Automatic Horizontal Parted Cold Box Core Shooter

These machines are used to manufacture cores using horizontally parted core box. The core box has top and bottom part with a horizontal parting line. We manufacture machines with varying capacities from 5 to 150 kg per shot.

Key Features

Robust design and sturdy construction
High dimensional accuracy and precision
Quick changing of dies
Fully automatic PLC based control with display unit
Fault diagnostics for troubleshooting
Safety enclosure, laser beam safety curtain and safety interlocks
Pneumatic and hydraulic models available
Auto core ejection mechanism
Amine gas generation unit
Core taker arrangement for heavy weight cores

CONTACT US

Gat No.1567, Shelar Wasti, Dehu-Chikhali Road,
Chikhali, Pune 412114
+919823834421
enquiry@galaxymachineindia.com

Types of Horizontal Parted Cold Box Core Shooter

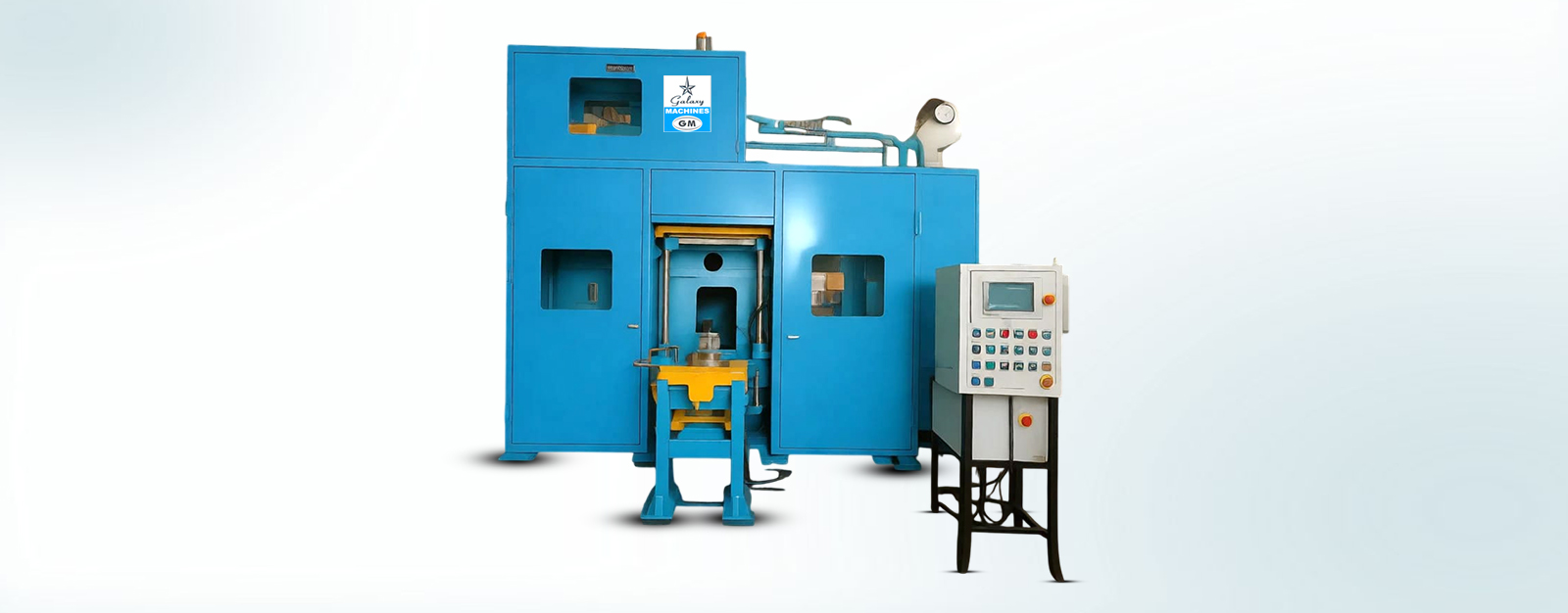

1. Horizontal Parted Cold Box Core Shooter

This machine is provided with bottom carrier trolley and top lifter assembly. The bottom half of the core box is fixed on core carrier trolley while the top half is movable. At the beginning of cycle, both halves of core box enter machine on the core carrier trolley. After shooting, gassing and purging operations the core carrier trolley comes out. The top half is lifted by top lifter assembly. The core can now be collected by the operator.

2. Horizontal Parted Cold Box Core Shooter With Side Mandrels

These machines are used to manufacture cores using horizontally parted core box. The core box has top and bottom part with a horizontal parting line. We manufacture machines with varying capacities from 5 to 150 kg per shot.
